TP130 (6 Axle)
The TP130 is a 6-axle, dual-engine switcher locomotive built for power and efficiency. Its larger-frame design extends engine life and improves fuel economy, while dual-engine capability provides consistent performance and adaptability. With increased tractive effort, the TP130 delivers superior pulling capacity, making it ideal for heavy-duty switching and industrial operations. This unit is also available in a single engine package.
Weight
370,000 LB
Speed
40 MPH
Engines
600hp to 900hp
Tractive Effort
Starting (35% adhesion)
130,000 LB
Power in Numbers
Minimum Curve
193-foot radius (30 degrees)
Dimensions
Length: 46’ – 1” ( 553” )
(between pulling faces): 50’ – 2” ( 602” )
Width: 10” – 3” ( 123” )
Height: 14’ – 2-3/4” ( 170.8” )
Air Brakes
Type 26 L
Control
AAR Standard
Traction Motors
D-77 or D-78 (6 units)
Air Compressor
Rotary Screw Type – 200 CFM
Generators
Brushless alternator
Wheel Base
Wheel Base: 13’ – 7” ( 163” )
Wheel Diameter: 40”
Fuel Capacity
300 gallons and up

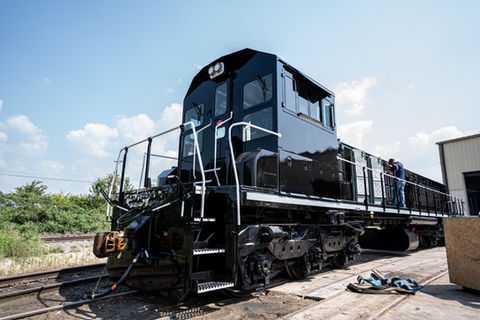

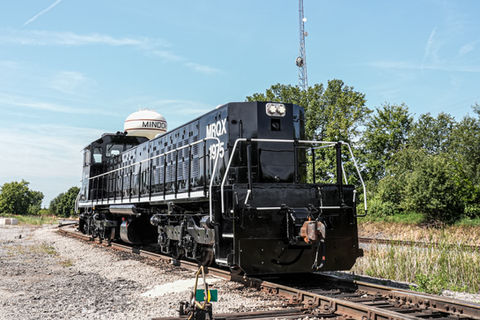

Project Gallery
