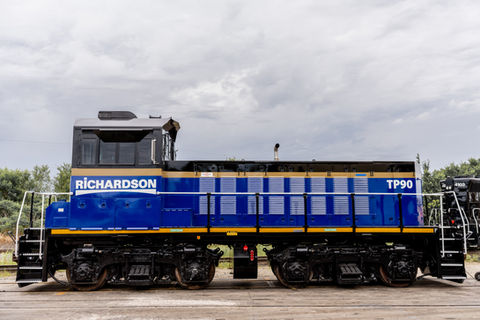

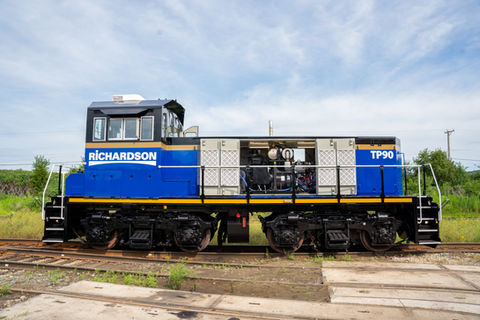

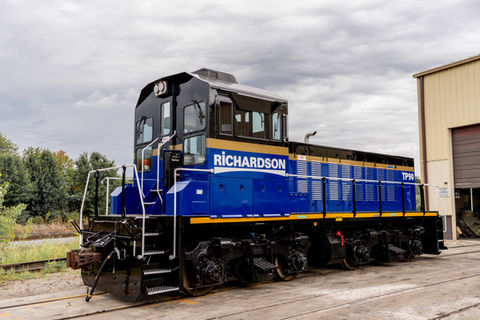

TP90 (4 Axle)
The Tractive Power TP90 is a robust and powerful locomotive designed for heavy-duty industrial and rail yard operations. Known for its exceptional tractive effort, the TP90 is capable of moving heavy loads with ease, making it an essential asset in the world of rail transportation and industrial logistics. This locomotive is engineered for reliability and efficiency, making it well-suited for a wide range of rail applications.
Weight
260,000 LB
Speed
40 MPH
Engines
400hp to 513hp
Tractive Effort
Starting (35% adhesion)
90,000 LB
Power in Numbers
Minimum Curve
193-foot radius (30 degrees)
Dimensions
Length ( between pulling faces): 44’ – 5” ( 533” )
Length: 40’ – 6” ( 486” )
Width: 10” – 3” ( 123” )
Height: 14’ – 2-3/4” ( 170.8” )
Air Brakes
Type 26 L
Control
AAR Standard
Traction Motors
D-77 or D-78 (4 units)
Air Compressor
Rotary Screw Type – 200 CFM
Generators
Brushless alternator
Wheel Base
Wheel Base: 8’ ( 96” )
Wheel Diameter: 40”
Fuel Capacity
300 gallons and up
